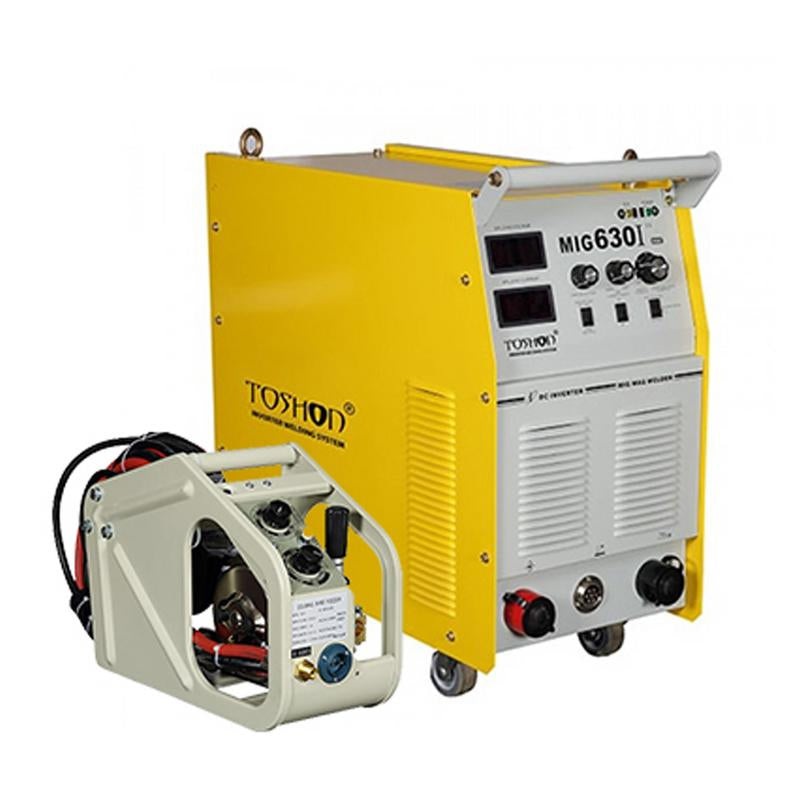

TOSHON MIG MAG/ARC 630AMPS 1 MOULDER IGBT

TOSHON MIG MAG/ARC 630AMPS 1 MOULDER IGBT Features: High efficiency and energy savings; its power usage efficiency is up to 80 85%, its power factor is up to 0.93; and the energy consumption saving is up to 1/3 in total by comparison to the transformer welder Digital display, current & voltage preset function Continuous adjustment function of the welding current & voltage with a sufficient wide adjustment range Capable of forming a good seam shape in the opposite side while making a backing weld Adapted an instant wire feeding circuit design, much more stable in wire feeding, capable of achieving highly stable wire feeding. Specification: Parameter: MIG – MAG / ARC 630 AMPS I Moulder Parameter Model MIG-630I 3P Input Voltage (V) AC415V15% Frequency (HZ) 50/60 Rated Input Current (A) MMA/TIG 35 Output Input Range (A) 80-630 Output Voltage Adjustment (V) 44 Wire-feeding Speed (m/min) 3.0-24 Duty Cycle (%) 60 Type of Wire Feeder Split Efficiency (%) 85 Power Factor 0.93 Insulation Grade F Housing Protection Grade IP21 Net Weight (kg) 50 External Dimension (inch) 25.5*12*25 Reviews There are no reviews yet. Be the first to review “TOSHON MIG MAG/ARC 630AMPS 1 MOULDER IGBT” Cancel replyYour email address will not be published. Required fields are marked *Your rating * Rate… Perfect Good Average Not that bad Very poor Your review *Name * Email * Save my name, email, and website in this browser for the next time I comment.
